Input 120/220/277/480VAC Output 24VAC 120VA Transformer Company

Input 120/220/277/480VAC Output 24VAC 120VA Transformer

Input 120/220/277/480VAC Output 24VAC 120VA Transformer

Zhejiang Dechuang Transformer Manufacturing Co., Ltd.

0
Views: 36

Product Details

MAIN TECHNICAL DATA

Degree of Protection:IP00

Primary: 120/220/277/480V 50/60Hz

Secondary: 24VAC

Insulation class:Class A、Class B

Insulation:3.75KV Rms

Ambient temp: (t)-40℃

Standards compliant:

EN60065:2006/UL5085-2/UL1446

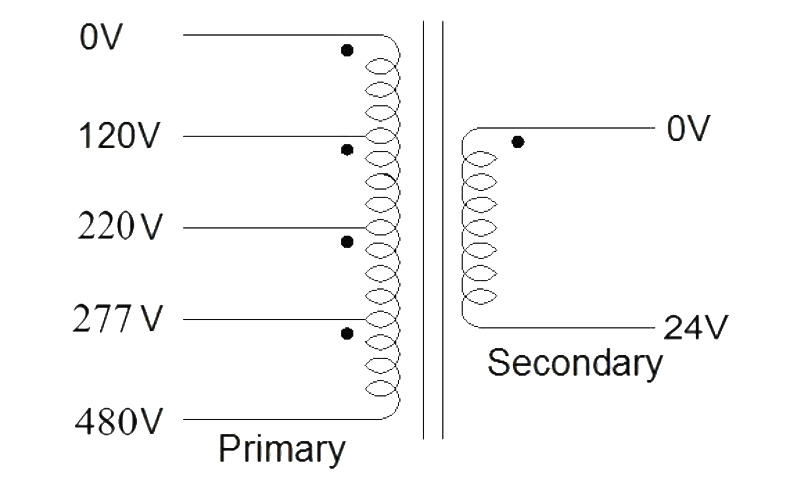

Schematics:

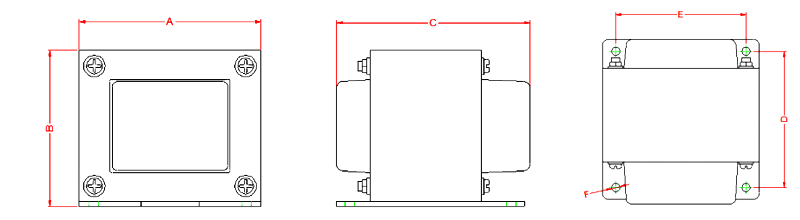

Structure diagram:

Dimensions(mm):



Power/VA

A

B

   C

D

E

F

Weight/kg

30VA

66.0

55.0

61.0

45.0

44.0

M4

0.85

35VA

66.0

55.0

64.0

48.0

44.0

M4

0.95

55VA

66.0

55.0

72.0

56.0

44.0

M4

1.12

70VA

66.0

55.0

81.0

65.0

44.0

M4

1.30

80VA

76.2

63.5

66.0

50.0

63.5

M4

1.16

95VA

76.2

63.5

81.0

65.0

63.5

M4

1.85

110VA

76.2

63.5

86.0

70.0

63.5

M4

1.90

110VA

86.0

71.5

86.0

65.0

71.5

M4

2.20

150VA

96.0

80.0

90.0

70.0

80.0

M5

2.80

210VA

105.0

87.5

100.0

75.0

87.5

M5

3.80

400VA

120.0

100.0

115.0

85.0

100.0

M5

5.82

500VA

133.0

111.0

120.0

90.0

111.0

M5

7.10



Customer Design Avaiable
