Product Details

MAIN TECHNICAL DATA

Power:50~2500VA

Degree of Protection:IP00

Primary: 120//240/415V 50/60Hz

Secondary: 36/26VAC

Insulation class:Class A、Class B

Insulation:3.75KV Rms

Ambient temp: (t)-40℃

Standards compliant:

EN61558-2-6/UL5085-2/UL1446

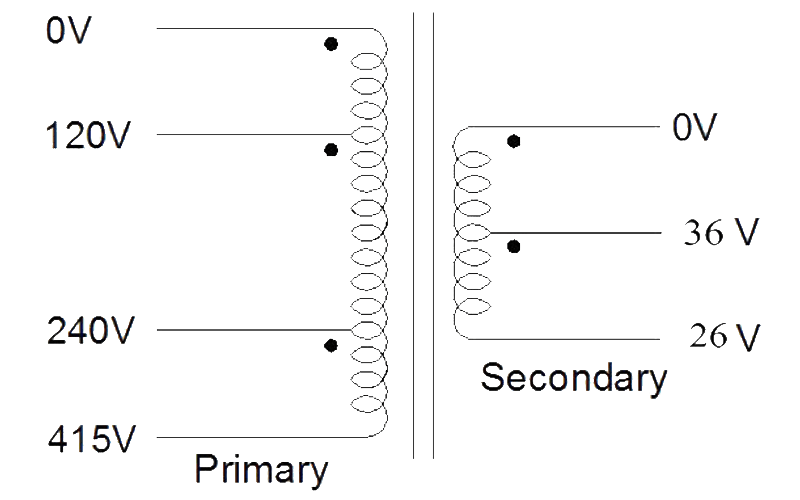

Schematics:

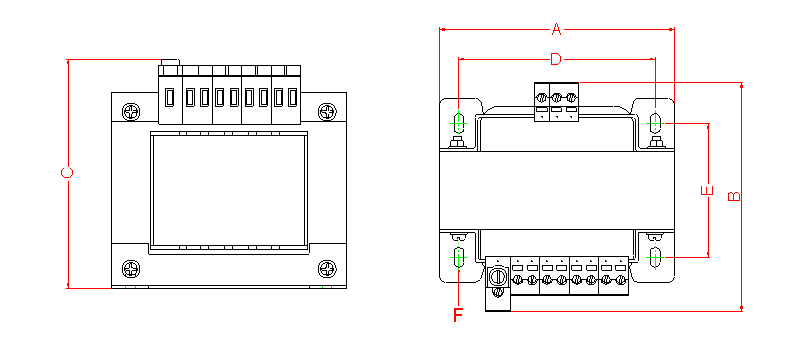

Structure diagram:



Dimensions(mm)



Power/VA

A

B

   C

D

E

F

Weight/kg

50VA

76

80

100

63.5

56

5×9

1.1

75VA

76

80

105

63.5

61

5×9

1.5

100VA

76

80

110

63.5

68

5×9

1.9

120VA

86

85

115

71.5

73

5×9

2.3

150VA

96

95

115

80

73

5×9

2.8

200VA

120

115

90

100

70

5×9

3.5

250VA

120

115

95

100

75

5×9

3.5

300VA

120

115

100

100

80

5×9

5.0

400VA

133

125

105

111

85

5×9

7.3

500VA

133

125

110

111

90

6×10

7.8

600VA

150

140

110

125

100

6×10

9.0

850VA

150

140

120

125

100

6×10

11.0

1000VA

150

140

125

125

105

6×10

12.0

1200VA

150

140

130

125

110

6×10

15.0

1500VA

168

155

140

140

120

6×10

17.0

2000VA

192

175

135

160

115

7×12

22.0

2500VA

192

175

145

160

125

7×12

26.0



Customer Design Avaiable
